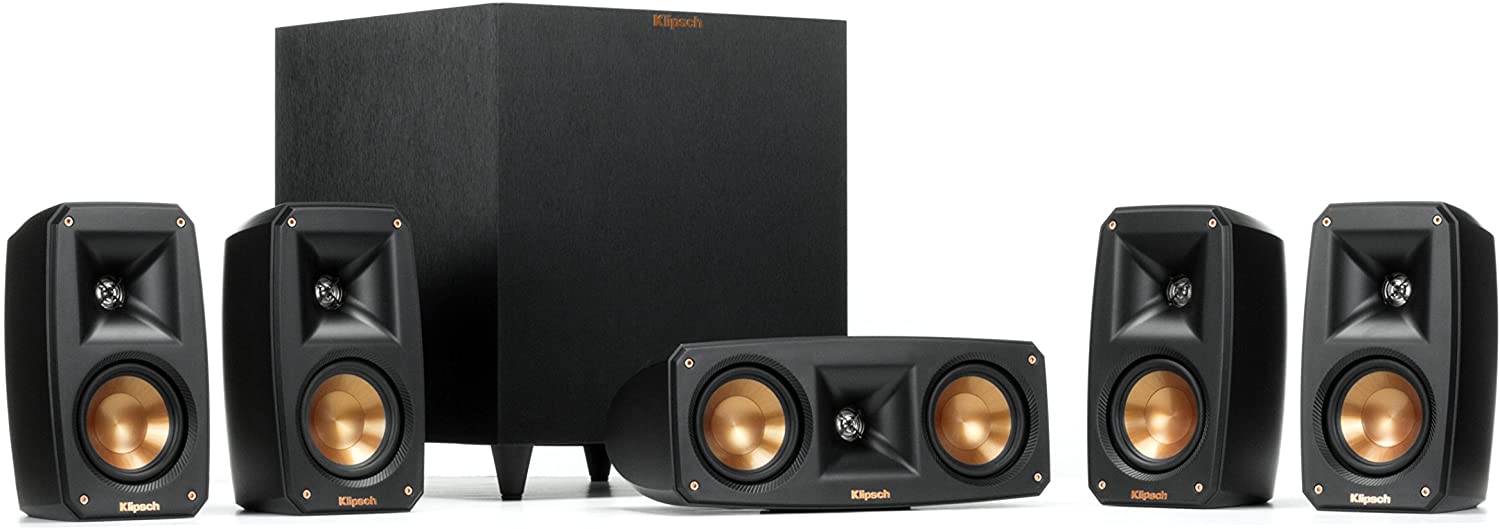

Klipsch Reference Theater Pack

Description

FULL SPECIFICATIONS:

SATELLITE & CENTER CHANNEL

• FREQUENCY RESPONSE:  110Hz – 23kHz +/– 3dB
• NOMINAL IMPEDANCE: 8 ohms compatible
• SENSITIVITY: Satellite: 91dB @ 2.83 volts / 1 meter, Center: 94dB @ 2.83 volts / 1 meter
• POWER HANDLING: Satellite: 50 watts (200 watts peak), Center: 75 watts (300 watts peak)
• HIGH-FREQUENCY DRIVER: Satellite & Center: 3/4” (1.9 cm) aluminum diaphragm compression driver mated to 90° x 90° Tractrix® horn
• LOW-FREQUENCY DRIVER: Satellite: 3.5” (8.9 cm) copper IMG woofer, Center: Dual 3.5” (8.9 cm) copper IMG woofer
• MOUNTING: Satellite: Keyhole and 1/4” x 20 threaded insert, Center: Dual Keyhole with dual 1/4” x 20 threaded insert
• SPEAKER WIRE: 14–18 gauge compatible

SUBWOOFER

• FREQUENCY RESPONSE: 38Hz – 120Hz +/– 3dB
• AMPLIFIER POWER: 50 watts / 150 watts peak
• MAXIMUM ACOUSTIC OUTPUT: 108 dB
• INPUTS: 2.4 GHz CD-quality wireless & Line level / LFE RCA jacks
• ENCLOSURE MATERIAL: MDF
• ENCLOSURE TYPE: Bass Reflex via down-firing 8” woofer and port
• DIMENSIONS: 13.25” H (33.7cm) x 11.75” W (29.9cm) x 11.75” D (29.9cm)
• FINISH: Brushed Black Polymer Veneer
• WEIGHT: 15.0 Ibs (6.8kg)
